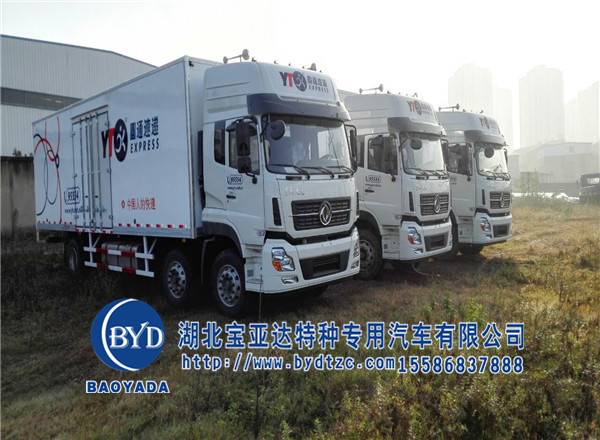

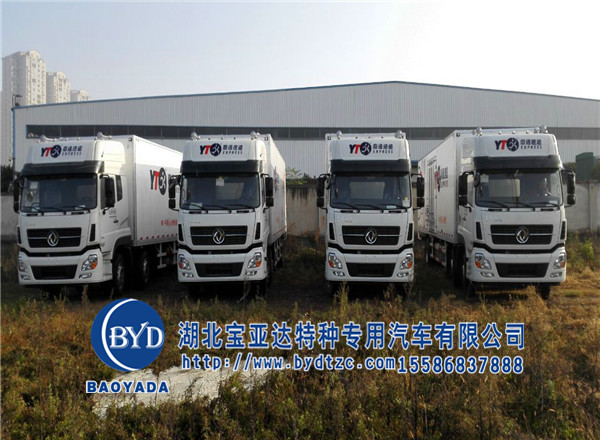

Yuantong Express custom batch five dry cargo container.

Yuantong express logistics company, headquarters in Beijing in October and Hubei Bao Yada special special automobile Limited company, successfully signed dozens of Dongfeng Tianlong 9.6 meters logistics container transport vehicle, and treasure completed orders in a short period of 15 days.

 After signing the contract, the general manager of the staff personally right temperature elaborate, November 11th smooth handover, very satisfied with the user, even passers-by said the car to do good, beautiful

 The Yuantong Express selected: Dongfeng commercial vehicle, Dongfeng Tianlong in five car configuration, 245 horsepower engine Cummins in five, Tianlong new high ceilings white cab, electric windows, door lock control, 6X2 (four four) drive, 600 liters of oil box aluminum alloy and the road. Alloy storage tank, this configuration is on the ball.

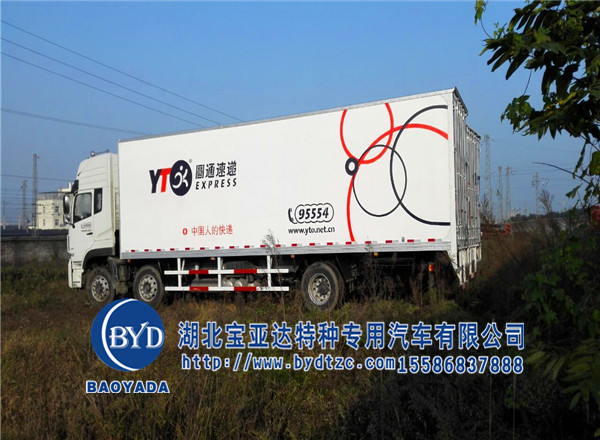

 Dongfeng DFH5250XXYAX1V truck
 The box body is made of glass fiber reinforced plastic composite board.
 [main technical parameters]
 Product trademark
 Dongfeng brand
 Announcement batch
 Two hundred and eighty
 Product name
 DFH5250XXYAX1V type truck
 product ID
 ZLJ2V51A03Y
 Total mass (Kg)
 Twenty-five thousand
 Tank volume (M3)
 Rated load quality (Kg)
 One billion three hundred and eighty-seven million thirteen thousand eight hundred and five
 Outline dimension (mm)
 11990 * 25002550 * 39003990
 The quality of service (Kg)
 Eleven thousand
 Cargo compartment size (mm)
 94009600 *, 2500 * 2400
 Number of drivers in the cab (person)
 2,3
 Load quality utilization factor
 One point two seven
 Approach angle / departure angle (degree)
 30/18
 Front / rear suspension (mm)
 1500/3190
 Axis number
 Three
 Wheelbase (mm)
 1950+53502050+5250
 Axle load (Kg)
 7000/7000/11000
 Maximum speed (Km/h)
 90,80
 The other option: only with different height of the cab, the high roof cab top air horn is optional, the top compartment closed, not open the door, do not open the door and side with two types of car body, optional plane and corrugated board structure. A set of optional cab of the same type, light type, installation exactly the same as the location (only the front cover is different in appearance). Flat cab optional dome, the high roof cab optional rear spoiler. Optional lifting tail board. The side door: material Q235, connection bolts. After the door: material Q235, connection bolt connection, section size of 120 * 60mm, the height from the ground 490mm; installation of satellite positioning function recorder.ABS models and manufacturers: 4460046440, vehicle control systems (China) Limited. With the optional chassis exhaust pipe, front disc brake and speed limiting device, speed limit 80km/h.


 Chassis technical parameters
 Chassis Model
 DFH1250AXV
 Chassis name
 Truck chassis (two types)
 Brand name
 Dongfeng brand
 manufacturing enterprise
 Dongfeng Commercial Vehicle Co., Ltd.
 Outline dimension (mm)
 11540 * 2550 * 3770
 Tyre number
 Eight
 Approach angle / departure angle (degree)
 30/20
 Tire specifications
 11.00R20295/80R22.5,12R22.5
 Number of steel plate spring
 8/8/9+9,
 Front track (mm)
 1980/19802040/2040
 Fuel type
 diesel oil
 Rear wheel (mm)
 One thousand eight hundred and sixty
 emission standard
 GB17691-2005 V, GB3847-2005
 Engine model
 Engine production enterprise
 Displacement (ML)
 Power (Kw)
 ISD230 50
 ISD245 50
 ISD270 50
 ISB220 50
 DDi75S245-50
 DDi75S292-50
 Dongfeng Cummins Engine Co., Ltd.
 Dongfeng Cummins Engine Co., Ltd.
 Dongfeng Cummins Engine Co., Ltd.
 Dongfeng Cummins Engine Co., Ltd.
 Dongfeng Commercial Vehicle Co., Ltd.
 Dongfeng Commercial Vehicle Co., Ltd.
 Six thousand and seven hundred
 Six thousand and seven hundred
 Six thousand and seven hundred
 Five thousand and nine hundred
 Seven thousand five hundred and thirty
 Seven thousand five hundred and thirty
 One hundred and sixty-nine
 One hundred and eighty
 One hundred and ninety-eight
 One hundred and sixty-two
 One hundred and eighty
 Two hundred and fifteen
 Hubei Bao Yada special special automobile Limited company
 7X24 Hour National toll free: 400-855-0710 Manager: temperature 15586837888
 Fax: 0710-3328929 mail box: xyxzccj@163.com website: http://www.xzccj.com
 Production: refrigerated trucks, cars, trucks, explosion-proof dangerous wing car, selling car, trucks, sprinkler, semi-trailer, dump trucks, sanitation trucks and other twenty varieties.
