Jiangling 4.2 meters Lanpai blasting equipment truck

CLW5040XQYJ4 type blasting equipment transport vehicle
 [main technical parameters]
 Product name ：CLW5040XQYJ4 type blasting equipment transport vehicle
 Announcement batch ：Two hundred and seventy-five
 Number of drivers in the cab (person) ：Two
 product ID ：ZL4234WP03U
 Total mass (Kg) ： Four thousand four hundred and ninety-five
 Rated load quality (Kg) ：One thousand four hundred and ninety-five
 Outline dimension (mm) ：5995 * 1980 * 2850
 The quality of service (Kg) ：Two thousand eight hundred and seventy
 Cargo compartment size (mm) ：4200 * 1850 * 1750
 Approach angle / departure angle (degree) ：18/16
 Front / rear suspension (mm) ：1065/1570
 Axis number ：Two
 Wheelbase (mm) ：Three thousand three hundred and sixty
 Axle load (Kg) ：1860/2635
 Maximum speed (Km/h) ：Eighty

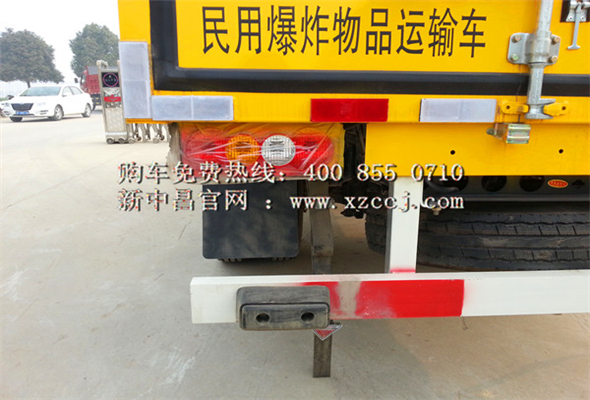

 Other: car top closed, not open. With the optional chassis cab. And optional side door. Side / back protection device material made of Q235A steel, the side door and side beam, after the protective device and the frame are connected by welding, after the door section size (width * height) 50 * 100 (mm), height of 440mm. transport Name: explosives, detonators, fireworks, class No.: 1.1B 1.1D, 1.1G, 1.2G, 1.3G, 1.4G etc.; install recorder with satellite positioning function; equipped with speed limiting device, a top speed of 80km/h. Only with front disc brakes and ABS chassis mounted. Radial tire only. Use only the chassis of the front of the exhaust pipe. The car is equipped with ABS; ABS model: 355080020, manufacturer: Zhejiang Asia Pacific Mechanical and electrical Limited by Share Ltd. Only using JX493ZLQ4 engine, the fuel consumption value is 12.6.
 Chassis technical parameters
 Chassis Model ：JX1041TG24
 Chassis name ：Truck chassis (two types)
 Brand name ：Jiangling brand
 manufacturing enterprise ：Jiangling auto Limited by Share Ltd
 Outline dimension (mm) ：5865 * 1880 * 2020
 Tyre number ：Six
 Approach angle / departure angle (degree) ：27/18.5
 Tire specifications ：7.00R16LT
 Number of steel plate spring ：7/4+5,7/4+6
 Front track (mm) ：One thousand three hundred and eighty-five
 Fuel type： diesel oil
 Rear wheel (mm) ：One thousand four hundred and twenty-five
 emission standard ：GB17691-2005 country IV, GB3847-2005
 Engine model ： JX493ZLQ4
 Engine production enterprise： Jiangling auto Limited by Share Ltd
 Displacement (ML) ：Two thousand seven hundred and seventy-one
 Power (Kw) ：Eighty
